Coal gangue is a solid waste generated during coal mining and washing. Historically, it has been a source of environmental pollution, occupying land and generating dust . However, with the right processing equipment, this material can be transformed into a valuable resource for building materials, road base, and other applications .
A modern, efficient coal gangue crushing line is key to this transformation. This article details a specific, high-performance setup that achieves excellent particle size reduction while prioritizing environmental protection through integrated dust collection systems. The core equipment in this line includes a jaw crusher PE 750×1060 for primary crushing, a double rotor hammer crusher 2PC1620 for secondary and fine crushing, and a circular vibrating screen 2YK3675 for accurate classification.
The Crushing Process: A Three-Stage Approach
The processing of coal gangue into usable aggregates typically follows a structured flow: primary crushing, secondary/fine crushing, and screening .
Stage 1: Primary Crushing with the Jaw Crusher PE750X1060

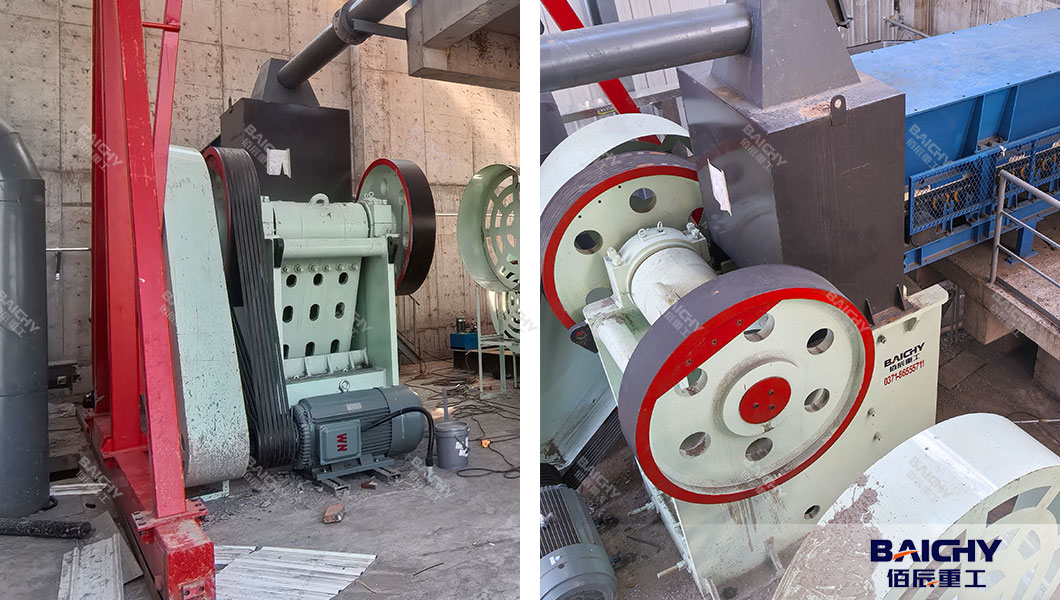

The process begins with the primary reduction of large run-of-mine coal gangue. The jaw crusher PE 750×1060 is an ideal choice for this demanding task.
● High Capacity and Efficiency: The jaw crusher PE 750×1060 is a robust machine known for its high capacity and ability to handle large feed sizes. It can accept materials up to 630mm, making it suitable for primary crushing of coal gangue boulders . With a capacity range of 105-195 t/h, it ensures a steady and efficient feed for the downstream processes .
● Reliable Operation: Its design, based on a movable jaw plate driven by an eccentric shaft, provides powerful crushing force and reliable performance, making it a staple in many mineral processing operations . This ensures the material is consistently reduced to a manageable size for the next crushing stage.
Stage 2: Secondary and Fine Crushing with the double rotor hammer crusher 2PC1620

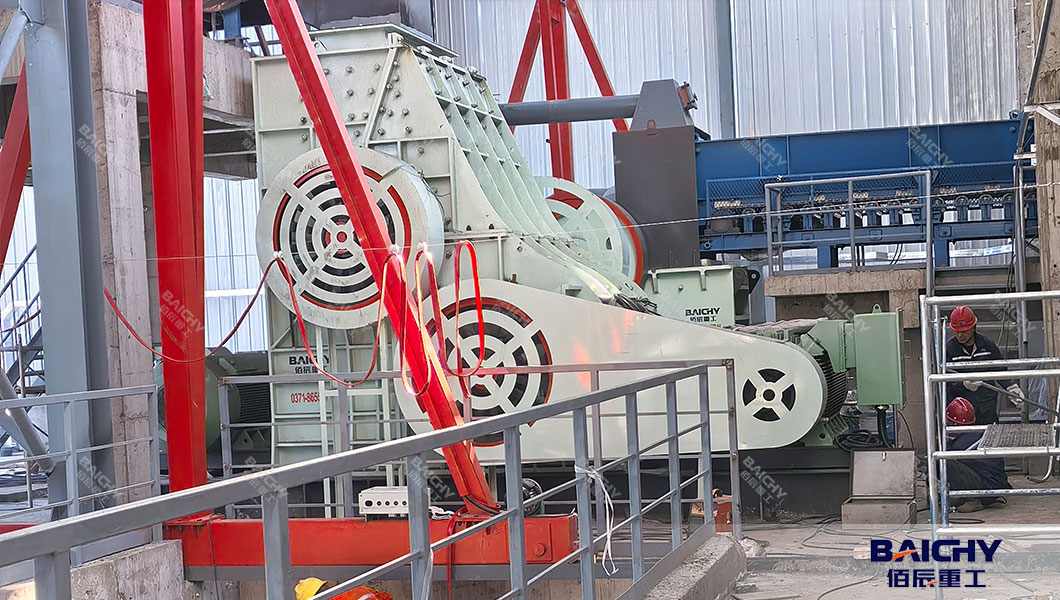

Following primary crushing, the material is conveyed to the double rotor hammer mill 2PC1620. This piece of equipment is particularly well-suited for coal gangue due to its unique design.
● Two-Stage Crushing in One Machine: The double-stage crusher combines two crushing rotors, enabling it to perform secondary and fine crushing in a single pass . This design is highly efficient for brittle materials like coal gangue, significantly reducing the number of machines required on the production line.
● Optimal for Coal Gangue: This type of crusher is especially recommended for coal gangue, shale, and clay, providing excellent particle size reduction for brick raw material preparation and other recycling applications . The model 1620 ensures a high throughput for medium to large-scale operations.
Stage 3: Screening and Classification with the Circular Vibrating Screen 2YK3675

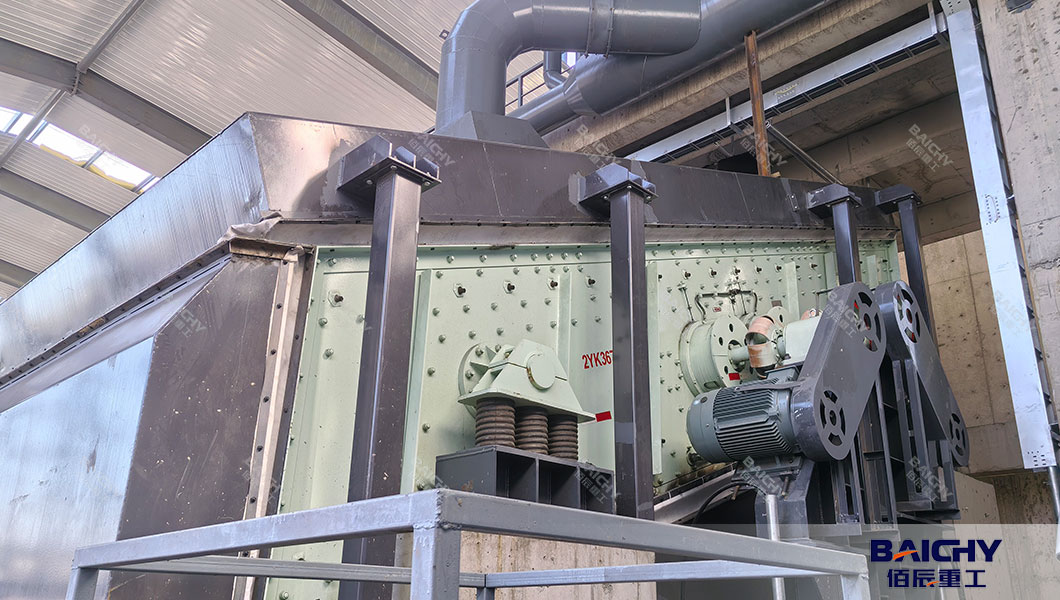

The final step in achieving a uniform product is screening. The crushed material from the 1620 double-stage crusher is fed onto the 3675 circular vibrating screen.
● High-Efficiency Classification: The circular vibrating screen effectively separates the crushed coal gangue into different particle sizes . The model 3675 (referring to its size, typically 3.6m x 7.5m) provides a large screening area, ensuring high throughput and precise separation.
● Closed-Loop Production: Material that meets the desired size specification is sent to the finished product stockpile. Oversized particles are returned to the crusher for further processing, creating a closed-loop system that maximizes efficiency and product quality .
The Clean Advantage: Integrated Dust Collection Systems
A major concern with crushing operations is the generation of dust, which poses environmental and health risks . This is where our crushing line sets itself apart. All three key pieces of equipment—the PE 750×1060 jaw crusher, the 1620 double-stage crusher, and the 3675 circular vibrating screen—are equipped with advanced dust collection devices.
● Controlled Environment: These systems are designed to capture dust at its source. By enclosing the crusher feed chutes, the crushing chambers, and the screening unit, and maintaining them under negative pressure, the dust generated is effectively contained and removed .
● Clean and Safe Operation: This integrated approach ensures compliance with strict environmental regulations. It minimizes airborne particulates, creating a cleaner and safer workplace. It also reduces the environmental impact of the operation, allowing for sustainable and responsible processing of coal gangue .
This coal gangue crushing line offers a powerful and efficient solution for processing this challenging material. The integration of dust collection devices on all units ensures that the operation is not only productive but also clean and environmentally sound, making it an ideal choice for modern recycling and building material production. Welcome to contact Baichy Machinery for solution and price for the coal crushing plant.
